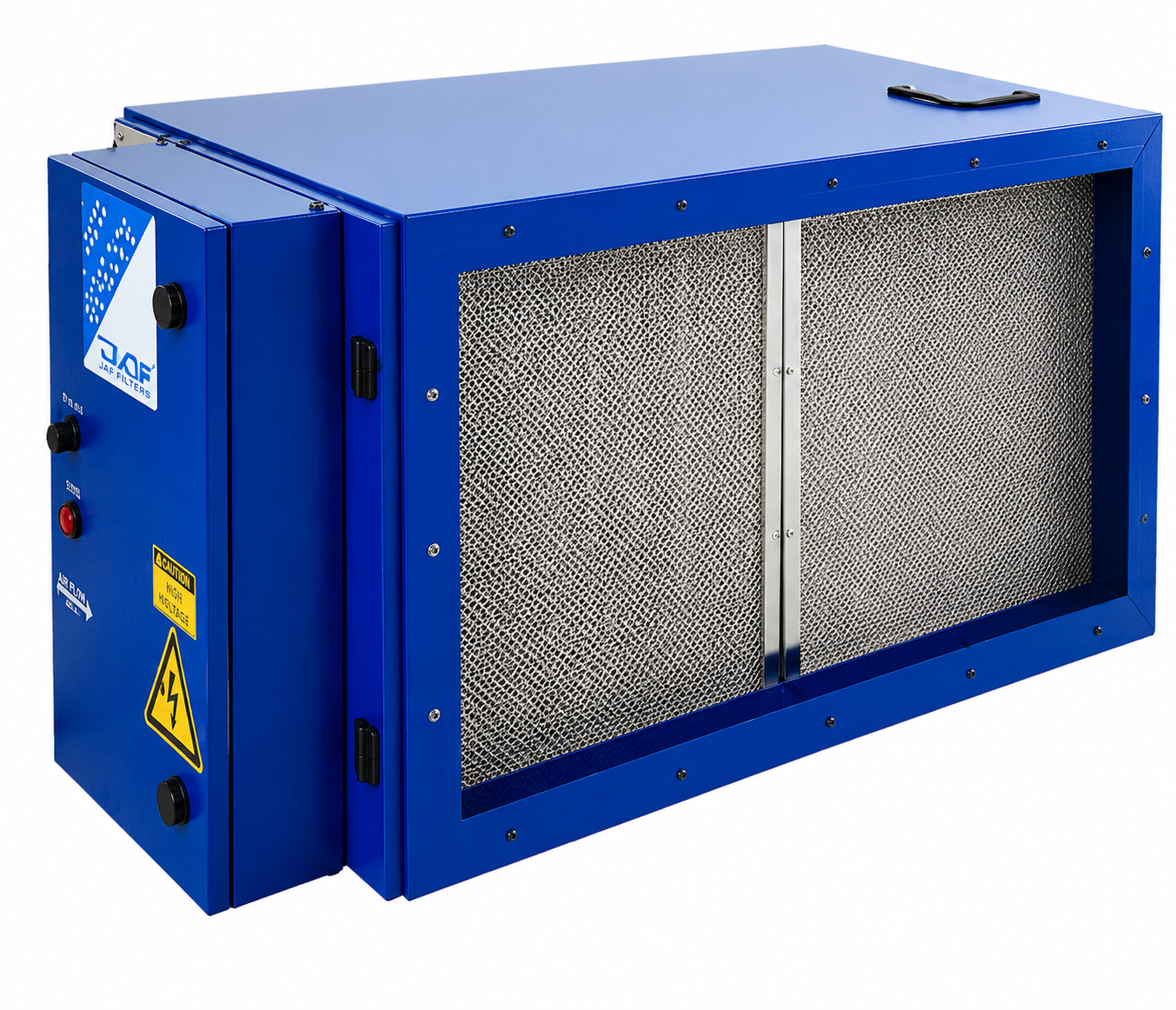

ELECTROSTATIC PRECIPITATOR T- 2002

Dimensions (mm):560D x 1103W x 534H - Installation : Suspended, wall, frame, or duct mounted - Unit weight (kg) : 70 Kg - Input voltage : 220-240V/50Hz/1PH  - Ionizer/collector output voltage : 12kV/6kV - Product power (w) : 50  - Number of cells : 2 - Pressure drop (Pa) : ≤65 - Flange size (mm) : 959 x 534 - Controls : Power switch with an indicator light - Pre-filter : 2 (460L x 460W x 22.2D) Standard aluminum mesh Heavy oil filter (optional) - Primary filter : Standard forever filter - electronic ionizer/ collector cell - After-filter : Activated carbon plate filter (optional) - Power supply : High-frequency solid- state design - Efficiency : To 95% based on ASHRAE 52.2 To 99% for double pass (calculated) - Construction : Welded galvanized steel, 1.2mm (18 gauge) top/bottom, 1.5mm (16 gauge) columns - Finish : Blue epoxy powder coating (RAL 5017) - Particle size : 0.01 to 10 microns - Genera : Multiple units can be joined together for increased volume or higher frequency

Download data sheet
